- New

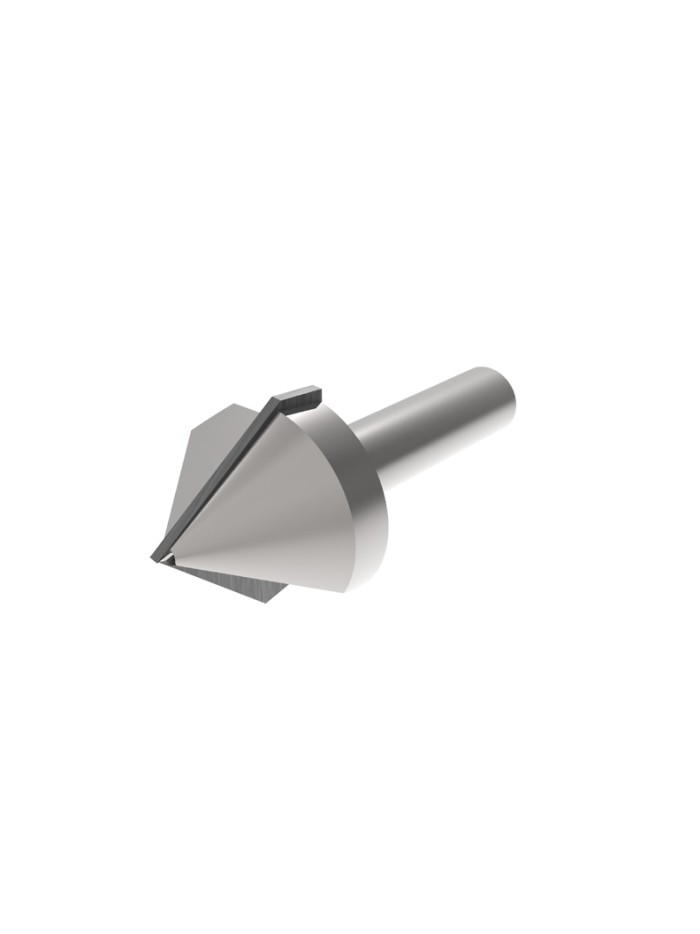

Conical end mills
Conical end mill with welded carbide inserts, specially designed for chamfering. Thanks to its geometry, this tool is highly efficient in machining:
- Thermoplastics: PMMA, PC, PVC, PP, PE, ABS, etc.
- Wood and wood derivatives (MDF, melamine chipboard, etc.).
- High-density foams.

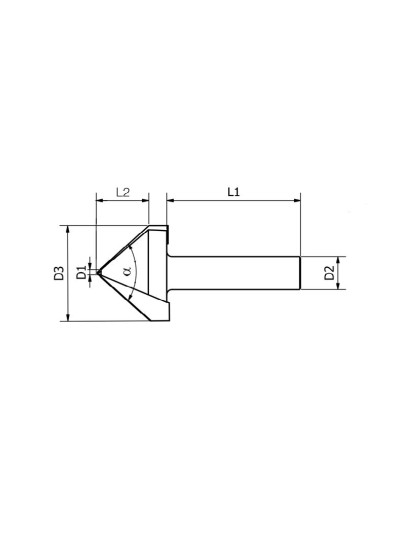

| Serie | D1 | D2 | D3 | L2 | L1 | Ángulo | |
| CO3000 | mm | mm | mm | mm | mm | α | z |
| Ref. | Métrico | ||||||
| CO3001 | 0,3 | 8 | 20 | 1,7 | 35 | 160º | 2 |
| CO3002 | 0,3 | 8 | 20 | 2,6 | 35 | 150º | 2 |
| CO3003 | 0,3 | 8 | 20 | 3,6 | 35 | 140º | 2 |
| CO3004 | 0,3 | 8 | 20 | 4,6 | 35 | 130º | 2 |
| CO3005 | 0,3 | 8 | 20 | 5,7 | 35 | 120º | 2 |
| CO3006 | 0,3 | 8 | 20 | 6,9 | 35 | 110º | 2 |
| CO3007 | 0,3 | 8 | 20 | 8,2 | 35 | 100º | 2 |
| CO3008 | 0,3 | 8 | 20 | 9,8 | 35 | 90º | 2 |
| CO3009 | 0,3 | 8 | 20 | 17 | 35 | 60º | 2 |
CO3000
Specific References
Conical end mill with welded carbide inserts, specially designed for chamfering. Thanks to its geometry, this tool is highly efficient in machining:
- Thermoplastics: PMMA, PC, PVC, PP, PE, ABS, etc.
- Wood and wood derivatives (MDF, melamine chipboard, etc.).
- High-density foams.
