GR9000 series with conical tip for ENGRAVING all types of materials. Except for stainless steel and ferrous metals.

Materials:

+ Plastic

+ Wood

+ Aluminium

The FIB8000 series is specially designed for cutting abrasive and fibre-loaded materials. The diamond-tip cutting edge design allows for efficient milling of the material's fibres and prevents delamination of the surface layers.

Recommended for cutting:

- Fibreglass (G10, G11, etc.)

- Carbon fibre.

- Other composite materials (aramid fibre, graphite, etc.).

PCD100 series, high-density polycrystalline diamond cutter with high wear resistance. Its design is highly stable, allowing high cutting performance when machining different materials such as:

- Wood and wood derivatives (MDF, melamine chipboard, etc.).

- High-pressure laminates (HPL), Bakelite, etc.

- Aluminium with high Si content and other non-ferrous metals.

- Carbon fibre, fibreglass, graphite, ceramic materials, etc.

Two- and three-flute carbide end mill designed to provide maximum rigidity and stability in metal machining. When cutting with this tool, the cutting forces are distributed evenly along the cutting edge, providing extra strength and preventing breakage even in low-power CNC centres. Ideal series for large engravings and cutting thin sheets in:

- Steel and stainless steel.

The FC7000 series has a geometry specially developed for machining foams. Mirror sharpening has been implemented to achieve an extremely sharp cutting edge that leaves exquisite finish surfaces. Virtually all references feature a neck for deep pocket machining. Suitable for cutting:

- Polyurethane (PUR) foams.

- Polyethylene (PE) foams.

- Foamed PVC.

The AB5000 series endmills are specially developed to achieve exceptional surface finish quality on thermoplastics, even when cutting at high feed rates.

This innovative geometry allows for optimal finishes in a single cutting pass on materials such as:

- Cast or extruded methacrylate.

- PC, PVC, foamed PVC, PP, PA, PE, ABS, etc.

- Solid surface materials: Corian®, Krion®, etc.

The Generica Pro series is a hard metal single lapped flute endmill, which allows for optimum quality in milling all types of plastic materials, woods and derivatives.

Its high versatility makes it an ideal choice for cutting:

Cast or extruded methacrylate.

PC, PVC, foamed PVC, PP, PA, PE, ABS, etc.

Solid surface materials: Corian®, Krion®, etc.

Wood and wood derivatives (MDF, melamine chipboard, plywood, etc.).

Cutter made with PCD diamond plates for grinding ultra-abrasive carbon fibre and fibreglass panels. Ø32x10x100 Shank 25, Z4. For ER40 tool holders.

Welded plate milling cutter for planing

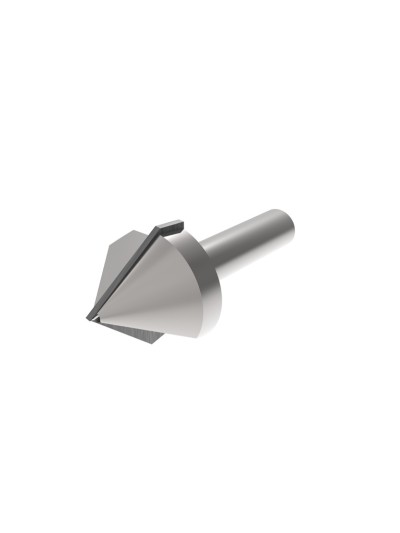

Conical end mill with welded carbide inserts, specially designed for chamfering. Thanks to its geometry, this tool is highly efficient in machining:

- Thermoplastics: PMMA, PC, PVC, PP, PE, ABS, etc.

- Wood and wood derivatives (MDF, melamine chipboard, etc.).

- High-density foams.

Special conical series for chamfering, folding and engraving plastics. Its helical geometry allows for perfect finishes on all types of plastic materials.

Carbide cutter with micro-polished helical helix that facilitates rapid chip ejection, leaving engraved surfaces clean and burr-free, both in plastics and non-ferrous metals. (*) References with D2 = 8 mm have a partially cylindrical cutting edge behind the conical edge, allowing for greater immersion depths (L2). Ideal for engraving and folding:

- Cast or extruded methacrylate.

- PC, PVC, foamed PVC, PP, PA, PE, ABS, etc.

- Solid surface materials: Corian®, Krion®, etc.

- Aluminium and aluminium composites: Dibond®, Alucobond®, etc.

- Copper, brass, zinc, etc.
