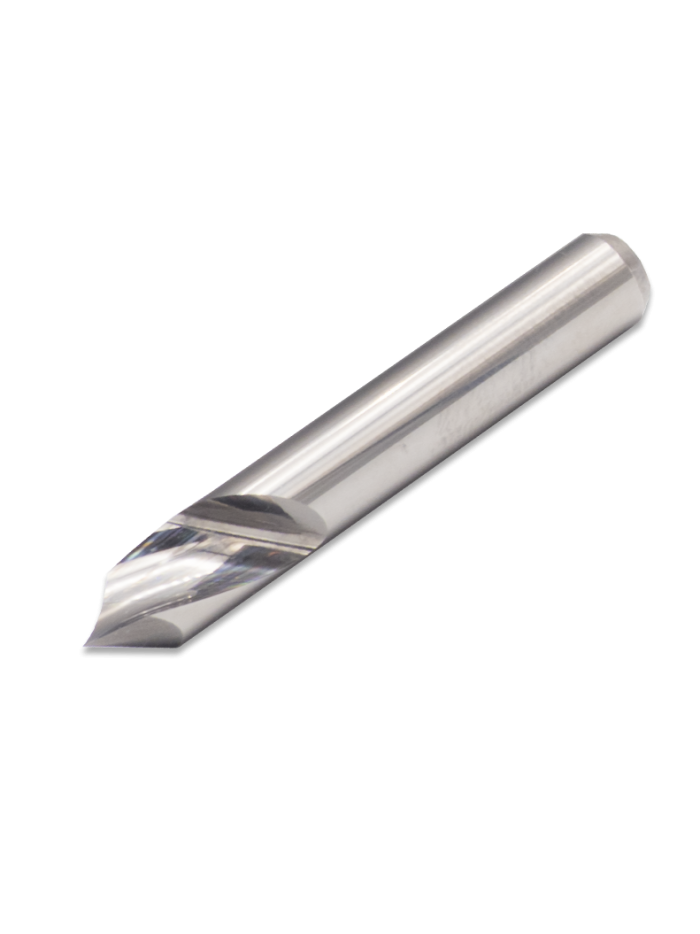

Special conical series for chamfering, folding and engraving plastics. Its helical geometry allows for perfect finishes on all types of plastic materials.
Carbide cutter with micro-polished helical helix that facilitates rapid chip ejection, leaving engraved surfaces clean and burr-free, both in plastics and non-ferrous metals. (*) References with D2 = 8 mm have a partially cylindrical cutting edge behind the conical edge, allowing for greater immersion depths (L2). Ideal for engraving and folding:
- Cast or extruded methacrylate.
- PC, PVC, foamed PVC, PP, PA, PE, ABS, etc.
- Solid surface materials: Corian®, Krion®, etc.
- Aluminium and aluminium composites: Dibond®, Alucobond®, etc.
- Copper, brass, zinc, etc.

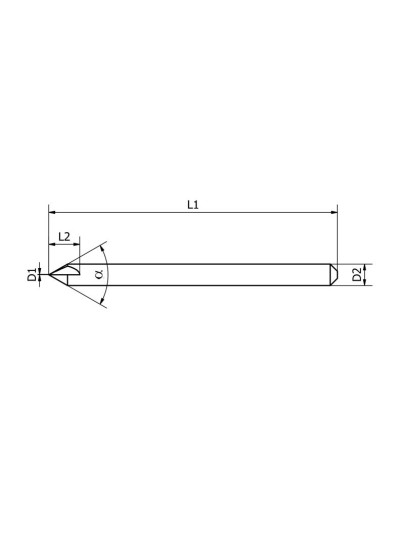

| PG3000 | D1 (mm) | D2 (mm) | L1 (mm) | a Angle | z |
| PG3001 | 0,2 | 6 | 40 | 30° | 1 |
| PG3002 | 0,5 | 6 | 40 | 30° | 1 |
| PG3003 | 0,5 | 8 | 60 | 30° | 1 |
| PG3004 | 0,7 | 6 | 40 | 30° | 1 |
| PG3005 | 0,2 | 6 | 40 | 60° | 1 |
| PG3006 | 0,5 | 6 | 40 | 60° | 1 |
| PG3007 | 0,5 | 8 | 50 | 60° | 1 |
| PG3008 | 0,7 | 6 | 40 | 60° | 1 |
| PG3009 | 0,2 | 6 | 40 | 90° | 1 |
| PG3010 | 0,5 | 6 | 40 | 90° | 1 |
| PG3011 | 0,5 | 8 | 50 | 90° | 1 |
| PG3012 | 0,7 | 6 | 40 | 90° | 1 |
GR9000 series with conical tip for ENGRAVING all types of materials. Except for stainless steel and ferrous metals.
Materials:
+ Plastic
+ Wood
+ Aluminium
Special conical series for chamfering, folding and engraving plastics. Its helical geometry allows for perfect finishes on all types of plastic materials.
Carbide cutter with micro-polished helical helix that facilitates rapid chip ejection, leaving engraved surfaces clean and burr-free, both in plastics and non-ferrous metals. (*) References with D2 = 8 mm have a partially cylindrical cutting edge behind the conical edge, allowing for greater immersion depths (L2). Ideal for engraving and folding:
- Cast or extruded methacrylate.
- PC, PVC, foamed PVC, PP, PA, PE, ABS, etc.
- Solid surface materials: Corian®, Krion®, etc.
- Aluminium and aluminium composites: Dibond®, Alucobond®, etc.
- Copper, brass, zinc, etc.
