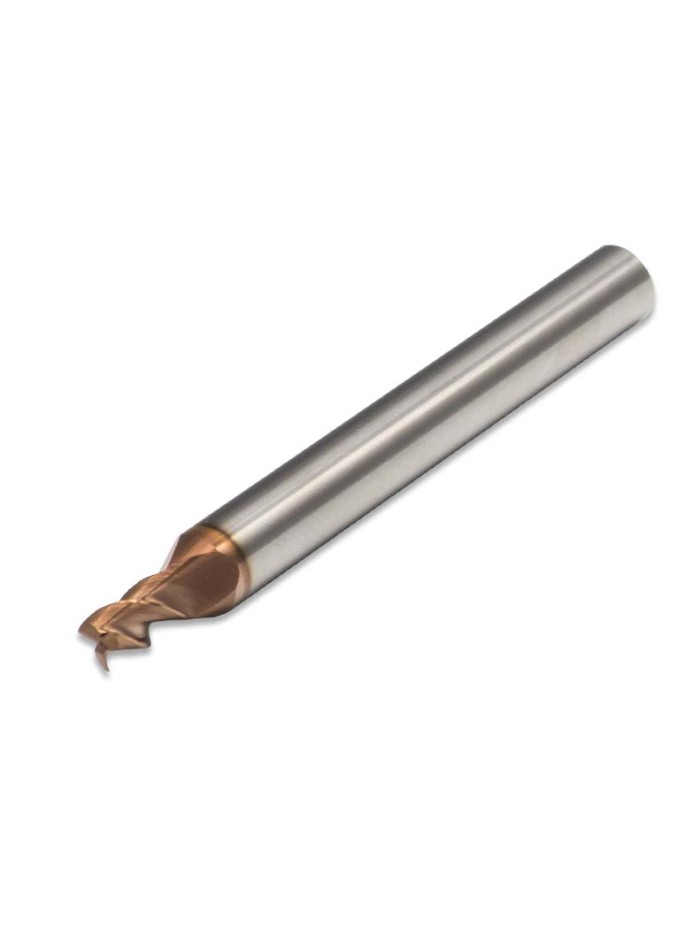

Stainless steel milling cutter
Two- and three-flute carbide end mill designed to provide maximum rigidity and stability in metal machining. When cutting with this tool, the cutting forces are distributed evenly along the cutting edge, providing extra strength and preventing breakage even in low-power CNC centres. Ideal series for large engravings and cutting thin sheets in:
- Steel and stainless steel.

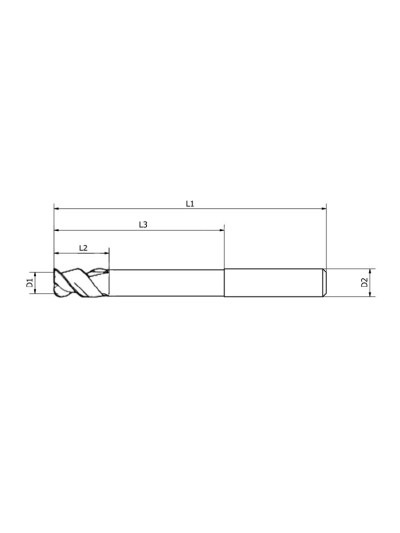

| Serie | D1 | D2 | L2 | L1 | L3 | |
| IN8000 | mm | mm | mm | mm | mm | z |
| Ref. | Metric | |||||
| IN8014 | 0,9 | 3 | 0,9 | 40 | 1,8 | 2 |
| IN8001 | 1 | 3 | 1 | 40 | 2 | 2 |
| IN8002 | 1,5 | 3 | 1,5 | 40 | 3 | 2 |
| IN8003 | 2 | 3 | 2 | 40 | 4 | 2 |
| IN8004 | 2,5 | 3 | 1,5 | 40 | 5 | 2 |
| IN8005 | 3 | 3 | 3 | 40 | 6 | 2 |
| IN8006 | 1 | 4 | 2 | 50 | 3 | |
| IN8007 | 1,5 | 4 | 3 | 50 | 3 | |
| IN8008 | 2 | 4 | 3 | 50 | 3 | |
| IN8009 | 2,5 | 4 | 3 | 50 | 3 | |
| IN8010 | 3 | 6 | 4,5 | 57 | 3 | |
| IN8011 | 4 | 6 | 6 | 57 | 3 | |
| IN8012 | 5 | 6 | 7 | 57 | 3 | |
| IN8013 | 6 | 8 | 8 | 57 | 3 | |
IN8000
Specific References
Two- and three-flute carbide end mill designed to provide maximum rigidity and stability in metal machining. When cutting with this tool, the cutting forces are distributed evenly along the cutting edge, providing extra strength and preventing breakage even in low-power CNC centres. Ideal series for large engravings and cutting thin sheets in:
- Steel and stainless steel.
