• New
Aluminium cutting router bit- cooling recommended
  • Aluminium cutting router bit- cooling recommended

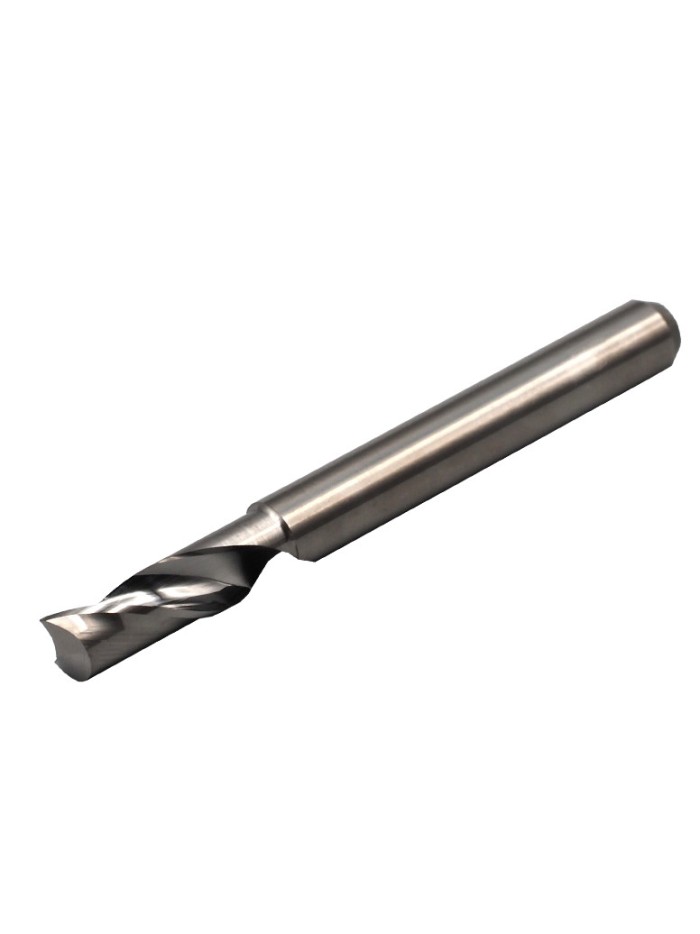

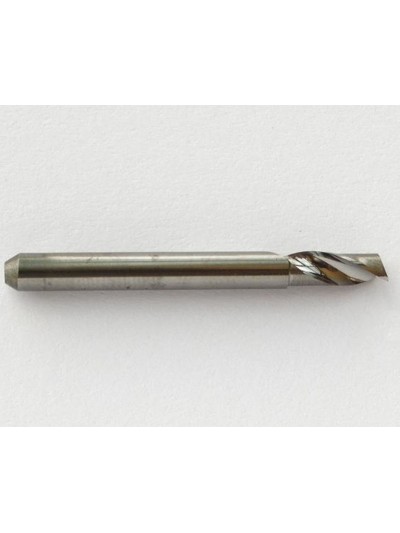

Endmill for aluminium cutting 1 flute

The AC6000 Series features micrograin carbide single-flute end mills specially designed for machining non-ferrous metals. They feature a very sharp cutting edge finished with an innovative tip geometry, developed specifically to facilitate immersion into the workpiece and improve chip ejection in soft aluminium, which tends to clog the tool during cutting.

To optimise performance, the use of lubricant during the cutting process is recommended.

Suitable for machining:



- Aluminium.

- Aluminium composites: Dibond®, Alucobond®, etc.

- Copper, brass, zinc, etc.

Translated with DeepL.com (free version)

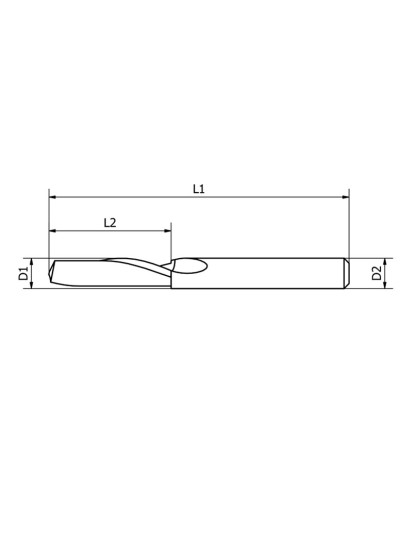

Serie D1 D2 L2 L1
AC6000 mm mm mm mm z
Ref.   Métrico
AC6030 1 3 3 40 1
AC6022 1 3 5 40 1
AC6032 1 6 5 40 1
AC6024 1,5 3 5 40 1
AC6034 2 3 5 40 1
AC6035 2 3 6 40 1
AC6036 2 3 8 40 1
AC6037 2 4 7 40 1
AC6023 2 6 5 40 1
AC6039 2 6 7 40 1
AC6040 2,5 3 10 40 1
AC6041 3 3 6 40 1
AC6001 3 3 10 40 1
AC6042 3 3 12 40 1
AC6043 3 4 10 40 1
AC6002* 3 6 5 40 1
AC6043 3 6 8 50 1
AC6044 3 6 10 50 1
AC6045 3 6 12 50 1
AC6003 * 4 4 6 40 1
AC6004 4 4 10 40 1
AC6005 4 4 14 50 1
AC6006 4 4 22 60 1
AC6007* 4 6 6 40 1
AC6046 4 6 12 50 1
Serie D1 D2 L2 L1
AC6000 mm mm mm mm z
Ref.   Métrico
AC6047 4 6 18 60 1
AC6008 5 5 16 60 1
AC6009 * 5 6 7 40 1
AC6010 5 6 14 50 1
AC6048 5,5 6 14 50 1
AC6049 * 6 6 6 40 1
AC6011 * 6 6 9 40 1
AC6012 6 6 14 50 1
AC6013 6 6 20 60 1
AC6014 6 6 25 60 1
AC6050 * 8 8 6 40 1
AC6051 * 8 8 14 50 1
AC6016 8 8 20 60 1
AC6017 8 8 25 75 1
AC6018 8 8 35 85 1
AC6052 * 10 10 14 50 1
AC6019 10 10 25 75 1
AC6020 12 12 25 75 1

*  HF references that enable high-feed machining, ideal for maximising productivity.

AC6000

Specific References

2 other products in the same category
LDC coated endmill for aluminium
  • New
Quick view

LDC Aluminium cut 1 flute

The DC6000 series represents an innovation in non-ferrous metal machining. This series is designed to withstand abrasive effects and prevent aluminium from sticking to the cutting edge during machining:

- Hard and abrasive aluminium alloys.

- Soft aluminium alloys with a tendency to stick.

- Aluminium composites: Dibond®, Alucobond®, etc.

- Copper, brass, zinc, etc.

Coated endmills for dry cutting aluminium no need for cooling 1 flute
  • New
Quick view

Dry cut Aluminium 1 flute

AE6000 series with a multi-layer coating that provides low friction and high wear resistance. Our innovative coating allows any type of aluminium alloy to be machined, even dry, without the need for any lubrication.

-Aluminium.

- Aluminium composites: Dibond®, Alucobond®, etc.

- Copper, brass, zinc, etc.
