Prefilter pad (F5) PA300TS
1st layer F5 class primary filter pad.
It is suitable for the purification of soot during laser marking, engraving, scribing, coding, manual soldering, dipping tin, manual repair of circuit boards, etc.

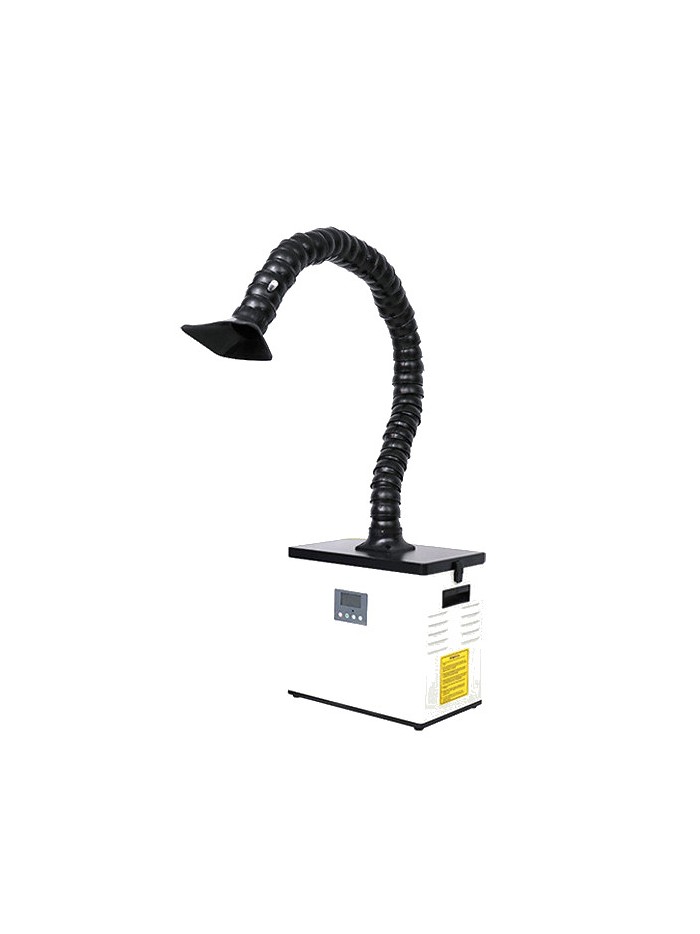

PC300 Fume Extractor with 300m3/h air flow and single freestanding arm.
220V,50HZ power. It has LCD display to show air flow and air pressure, air flow can be adjustable by both key switch and remote control, has warning system to remind customer to replace filters once blocked.

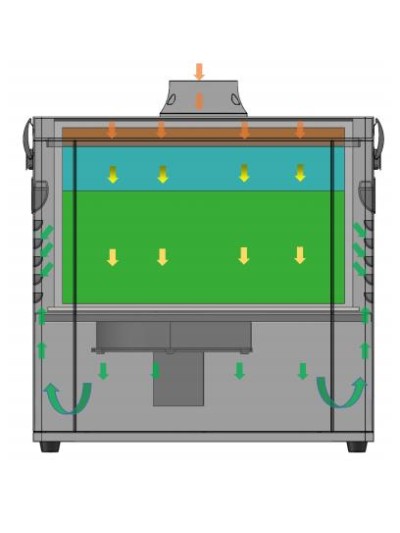

1st layer F5 class primary filter pad.
2nd layer F8 class medium efficiency filter. System PC300
HEPA filter combined with activated carbon filter for PC300 system.
190x360x210mm
PC800 fume extractor:
Air flow rate: 800 m³/h (1360 CFM)
Pressure: 10,000 Pa
Power: 1.3 kW
Noise level: < 63 dBA
Weight: 86 kg
Dimensions: 500×562×1040mm
Inlet diameter: 100 / 125 mm
Voltage: 90–110 V / 210–257 V, single-phase, 50/60 Hz
Pre-filter: F9 deep-pleated filter (95% at 1.0 μm, ~20 m²)
Main filter: H14 deep-pleated filter (99.99% at 0.3 μm) + activated carbon (20 kg)
It features an LCD screen displaying airflow and air pressure; the airflow can be adjusted using either the switch or the remote control; it has an alert system to remind customers to replace the filters when they become blocked.
It is suitable for the purification of soot during laser marking, engraving, scribing, coding, manual soldering, dipping tin, manual repair of circuit boards, etc.
PC300 Fume Extractor with 300m3/h air flow and single freestanding arm.
220V,50HZ power. It has LCD display to show air flow and air pressure, air flow can be adjustable by both key switch and remote control, has warning system to remind customer to replace filters once blocked.
