Special endmills with a balanced cut
  • Special endmills with a balanced cut

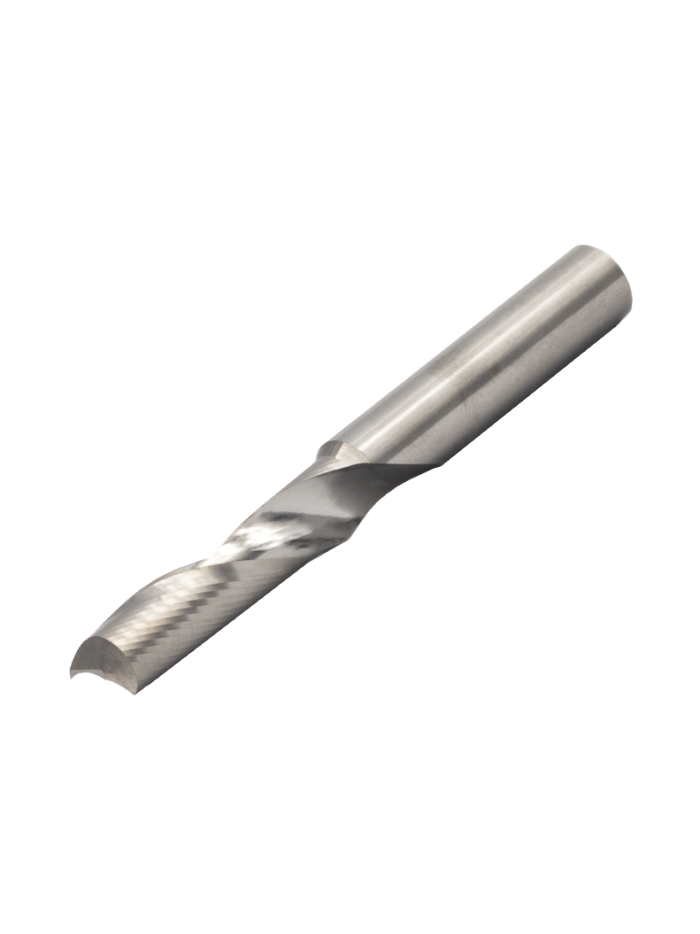

Endmills with a balanced cut

The BC5000 balanced cutting series features innovative geometry characterised by a mirror-finish micro-polished helix and a unique cutting edge design that enables stable, vibration-free cutting, even in machining conditions that require high feed rates and a depth of cut greater than 2 x D1.

Suitable for:

- Cast or extruded methacrylate.

- PC, PVC, foamed PVC, PP, PA, PE, PET, HDPE ABS, etc.

- Solid surface materials: Corian®, Krion®, etc.

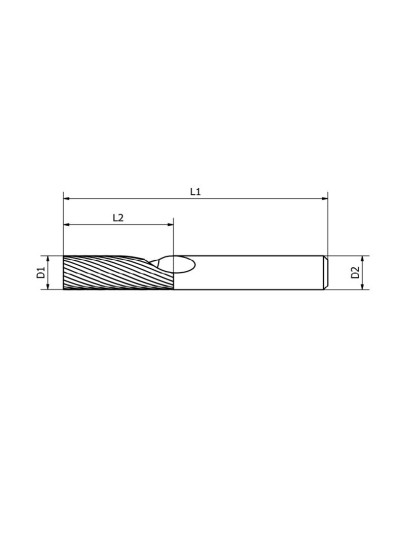

Serie D1 D2 L2 L1
BC5000 mm mm mm mm z
Ref.   Métrico
BC5021 2 6 6 50 1
BC5025 2,5 3 8 40 1
BC5026 3 3 10 40 1
BC5027 3 6 10 50 1
BC5018 4 4 12 50 1
BC5019 4 6 12 50 1
BC5015 4 4 16 50 1
BC5023 4 6 20 60 1
BC5024 5 5 16 60 1
BC5016 6 6 22 60 1
BC5017 6 6 32 70 1
BC5022 8 8 22 60 1
BC5028 10 10 32 75 1
BC5029 12 12 42 100 1
BC5030 14 14 62 120 1
BC5000

Specific References

1 other product in the same category
Special router bit for acrylic cutting
  • New
Quick view

Acrylic cutting 1 flute

The AB5000 series endmills are specially developed to achieve exceptional surface finish quality on thermoplastics, even when cutting at high feed rates.

This innovative geometry allows for optimal finishes in a single cutting pass on materials such as:

- Cast or extruded methacrylate.

- PC, PVC, foamed PVC, PP, PA, PE, ABS, etc.

- Solid surface materials: Corian®, Krion®, etc.
