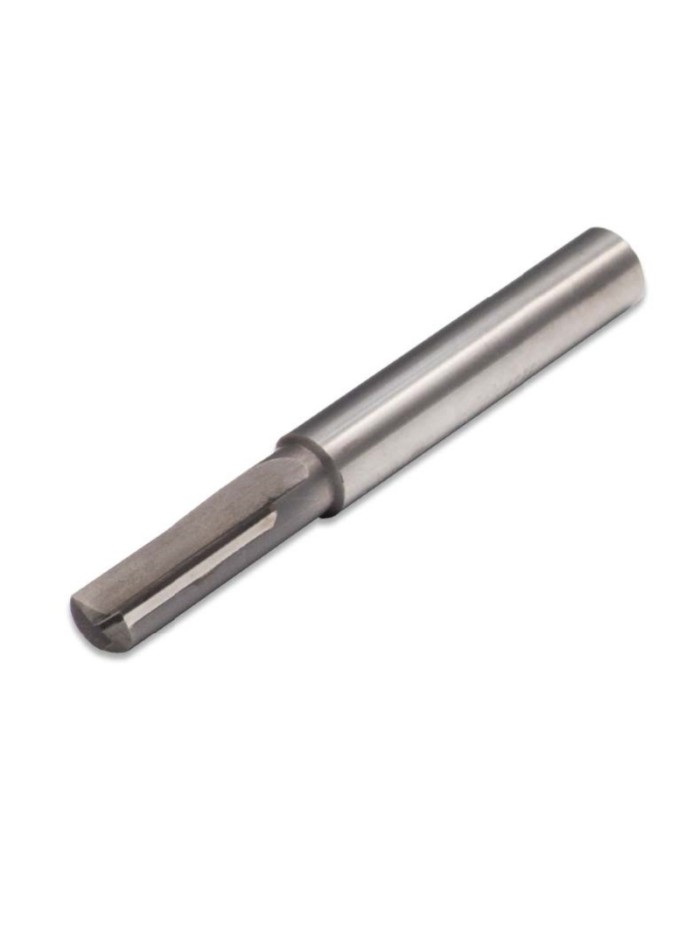

Router bit with polycrystalline diamond inserts for cutting and polishing acrylic
  • Router bit with polycrystalline diamond inserts for cutting and polishing acrylic

PCD superfinish endmills

The PCM100 series with high-density polycrystalline diamond inserts, highly resistant to wear and with a specific sharpening that allows for a very sharp edge, ideal for polishing and achieving cutting surfaces with a high level of shine or transparency, depending on the material of the workpiece.

The PCM100 series can polish with both the tool's side and tip.



Suitable for cutting and engraving:



- Thermoplastics: PMMA, PC, PVC, PP, PE, ABS, etc.



- Aluminium and other non-ferrous metals.



- Wood and wood derivatives (MDF, melamine chipboard, etc.).

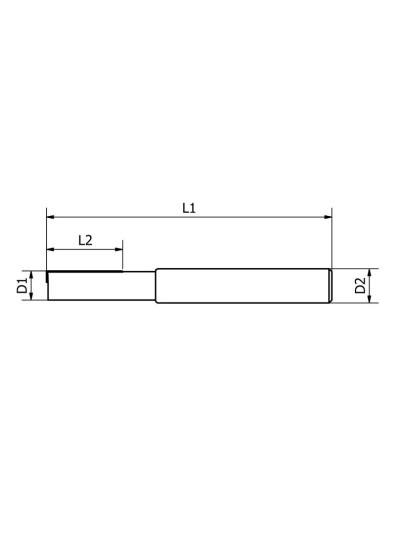

Serie D1 D2 L2 L1
PCM100 mm mm mm mm z
Ref.   Metric
PCM101 3 6 6 38 1
PCM102 4 6 10 50 1
PCM103 6 6 14 50 1
PCM104 8 8 18 50 1
PCM105 10 10 22 60 1
PCM100
