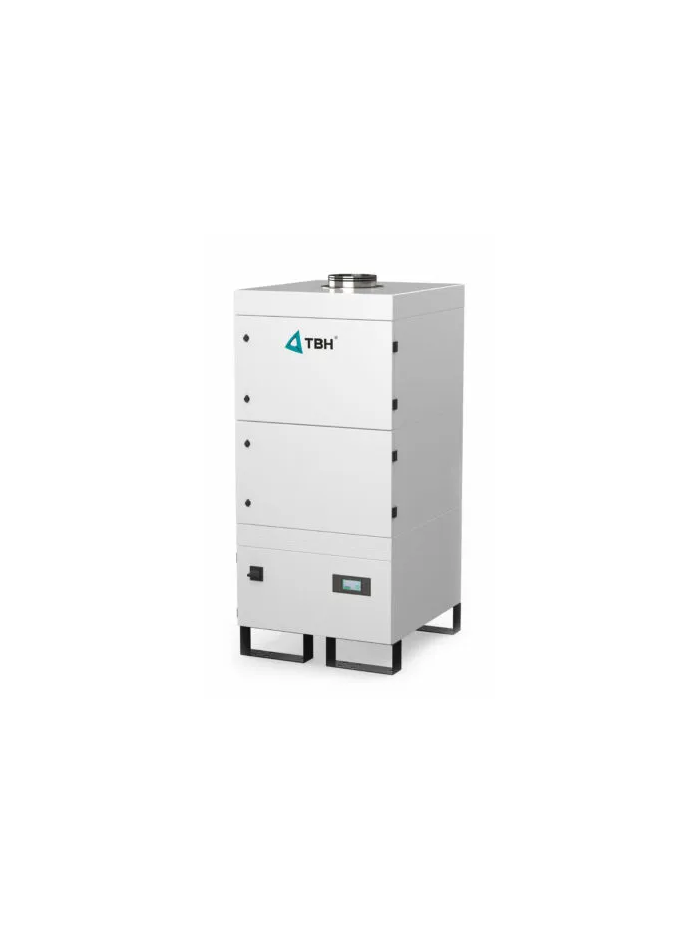

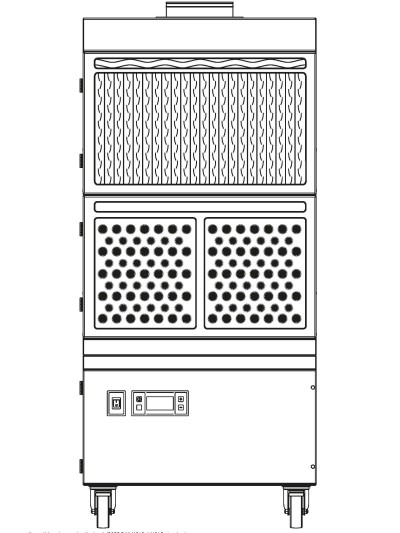

The LN 610 system, with its powerful and modular design, can function as a central extraction unit for several workstations at the same time. It is available in different versions (STANDARD, A, ZS and ZSA) and incorporates control electronics that facilitate its integration into automated processes.
|
Volumetric air flow rate |
máx. 2000 m³/h |
|
Effective air flow rate
|
300-1500 m³/h |
|
Frequency
|
50/60 Hz |
|
Motor power
|
3 kW |
|
Noise level |
aprox. 70 db(A) |
|
Serial interface
|
Harting (upper housing with HAN6B connector, 24 pins) |
|
Drive type
|
Brushless motor |
(mm) 1350x777x700 DN 2OO

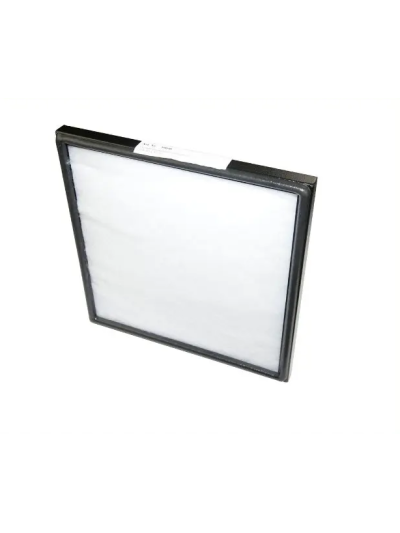

Filter pads F5, 728x638x20
AC-Filter DUO, 730x300x280 mm
Version: metal cassette
filling: approx 60 liters specially impregnated activated carbon
