1st layer F5 class primary filter pad.
2nd layer F8 class medium efficiency filter. System PC300
AC-Filter DUO, 730x300x280 mm
Version: metal cassette
filling: approx 60 liters specially impregnated activated carbon
Particle pre-filter for TFS 1000. Retains dust and coarse particles, extending the service life of the main filter.
Active carbon filter for TFS 1000. Maximum efficiency in absorbing gases and odours.
Filter pads F5, 728x638x20

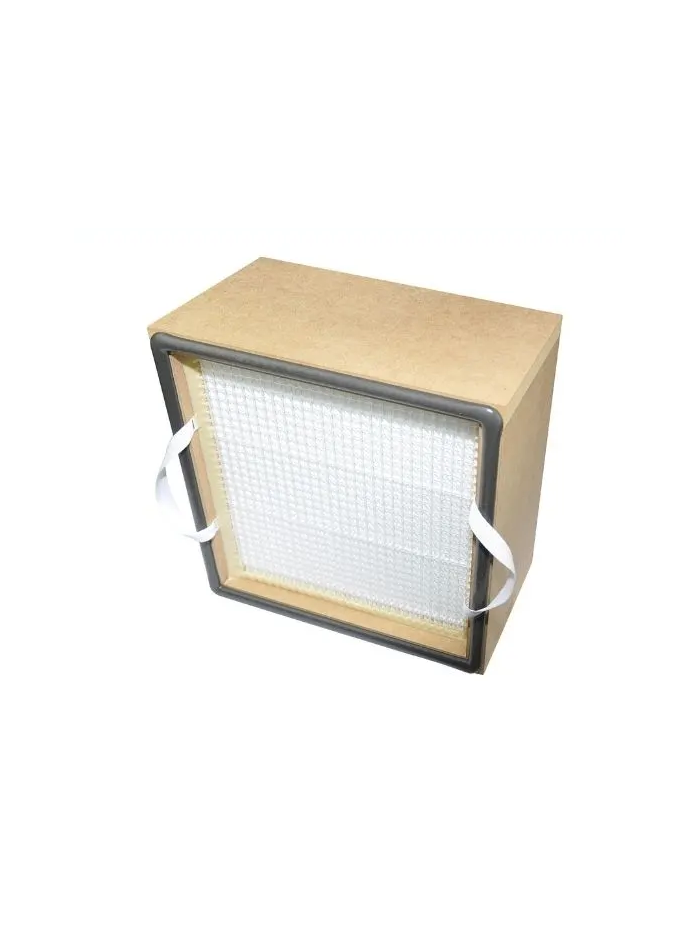

Particle filter for TFS 1000. High efficiency in retaining dust and contaminants, ensuring greater system protection and long service life.
HEPA filter combined with activated carbon filter for PC300 system.
190x360x210mm
Filter materials are non-toxic and therefore can be disposed of under normal waste conditions, subject to analysis of the collected particulate and/or Gas.
|
Specifications:
|
|
|
Type |
Pre Filter |
|
Dimensions (mm) |
310H x 370W x 380D Approx. |
|
Filter Media |
Pleated glass fibre material. |
|
Filter Media 2 (if applicable) |
N/A |
|
Fabrication |
Zinc plated Steel case, sealed with Polyurethane sealant. |
|
Connection |
Rubber Gasket at rear of filter |
|
Efficiency |
90% for particle sizes down to 0.4μm |
|
Carbon Weight |
N/A
|
Filter materials are non-toxic and therefore can be disposed of under normal waste conditions, subject to analysis of the collected particulate and/or Gas.
|
Specifications:
|
|
|
Type |
Combined Filter |
|
Dimensions (mm) |
190H x 370W x 390D Approx. |
|
Filter Media |
Pleated glass fibre material. |
|
Filter Media 2 (if applicable) |
Impregnated Activated Carbon. |
|
Fabrication |
Zinc plated Steel case, sealed with Polyurethane sealant. |
|
Connection |
N/A |
|
Efficiency |
99.997% removal of 0.3µm particles. |
|
Carbon Weight |
Approximately 11 Kg.
|
