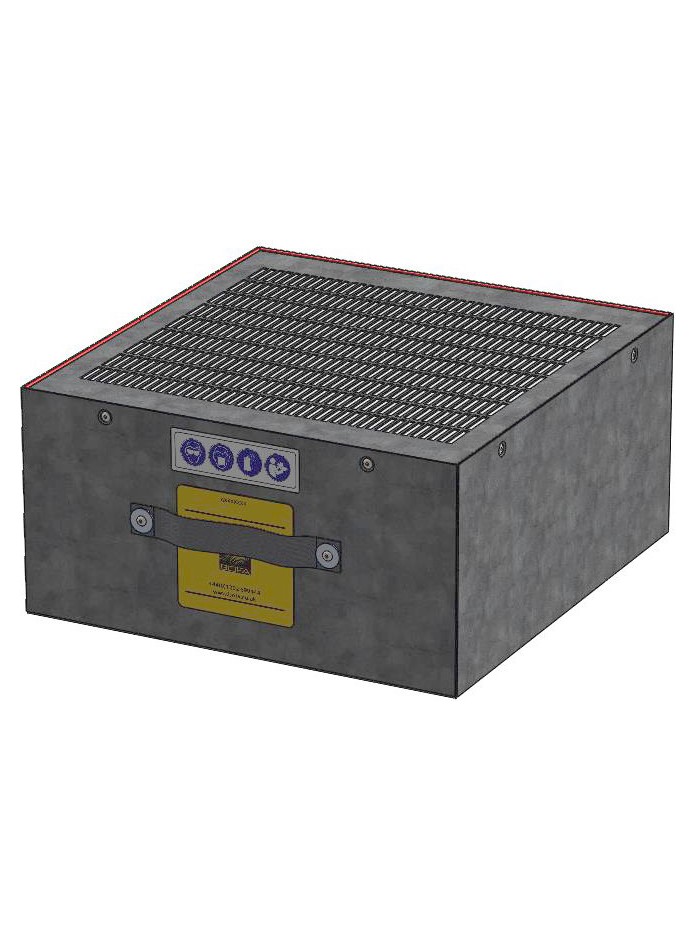

AD Oracle PC Combined filter
Filter materials are non-toxic and therefore can be disposed of under normal waste conditions, subject to analysis of the collected particulate and/or Gas.
|
Specifications:
|
|
|
Type |
Combined Filter |
|
Dimensions (mm) |
190H x 370W x 390D Approx. |
|
Filter Media |
Pleated glass fibre material. |
|
Filter Media 2 (if applicable) |
Impregnated Activated Carbon. |
|
Fabrication |
Zinc plated Steel case, sealed with Polyurethane sealant. |
|
Connection |
N/A |
|
Efficiency |
99.997% removal of 0.3µm particles. |
|
Carbon Weight |
Approximately 11 Kg.
|
190H x 370W x 390D
R1846
