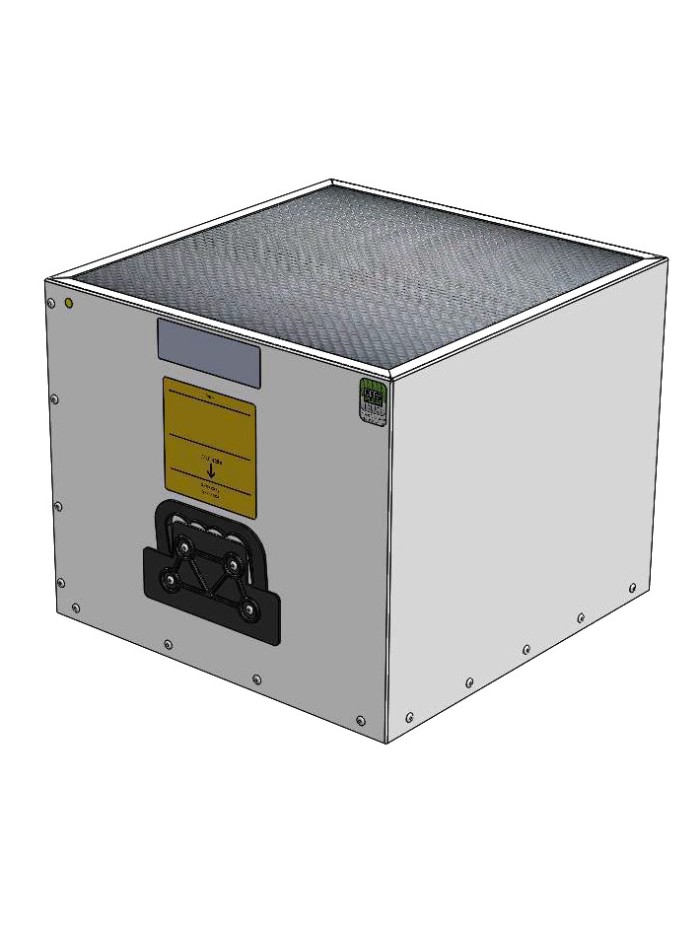

AD Oracle Pre Filter
Filter materials are non-toxic and therefore can be disposed of under normal waste conditions, subject to analysis of the collected particulate and/or Gas.
|
Specifications:
|
|
|
Type |
Pre Filter |
|
Dimensions (mm) |
310H x 370W x 380D Approx. |
|
Filter Media |
Pleated glass fibre material. |
|
Filter Media 2 (if applicable) |
N/A |
|
Fabrication |
Zinc plated Steel case, sealed with Polyurethane sealant. |
|
Connection |
Rubber Gasket at rear of filter |
|
Efficiency |
90% for particle sizes down to 0.4μm |
|
Carbon Weight |
N/A
|
310H x 370W x 380D
R1847
Specific References
10 other products in the same category
Particle Filter H14
Particle filter for TFS 1000. High efficiency in retaining dust and contaminants, ensuring greater system protection and long service life.
SafeLine Filter F9
Particle pre-filter for TFS 1000. Retains dust and coarse particles, extending the service life of the main filter.
Particle Filter (F8) PC300
2nd layer F8 class medium efficiency filter. System PC300
AC Filter LN610
AC-Filter DUO, 730x300x280 mm
Version: metal cassette
filling: approx 60 liters specially impregnated activated carbon
Pre-filter mat (F5) LN610
Filter pads F5, 728x638x20
Combined filter (H14) PA-300TS
HEPA filter combined with activated carbon filter for PC300 system.
190x360x210mm
Prefilter pad (F5) PA300TS
1st layer F5 class primary filter pad.
TFS1000 activated carbon...
Active carbon filter for TFS 1000. Maximum efficiency in absorbing gases and odours.
AD Oracle PC Combined filter
Filter materials are non-toxic and therefore can be disposed of under normal waste conditions, subject to analysis of the collected particulate and/or Gas.
|
Specifications:
|
|
|
Type |
Combined Filter |
|
Dimensions (mm) |
190H x 370W x 390D Approx. |
|
Filter Media |
Pleated glass fibre material. |
|
Filter Media 2 (if applicable) |
Impregnated Activated Carbon. |
|
Fabrication |
Zinc plated Steel case, sealed with Polyurethane sealant. |
|
Connection |
N/A |
|
Efficiency |
99.997% removal of 0.3µm particles. |
|
Carbon Weight |
Approximately 11 Kg.
|
Filter materials are non-toxic and therefore can be disposed of under normal waste conditions, subject to analysis of the collected particulate and/or Gas.
|
Specifications:
|
|
|
Type |
Pre Filter |
|
Dimensions (mm) |
310H x 370W x 380D Approx. |
|
Filter Media |
Pleated glass fibre material. |
|
Filter Media 2 (if applicable) |
N/A |
|
Fabrication |
Zinc plated Steel case, sealed with Polyurethane sealant. |
|
Connection |
Rubber Gasket at rear of filter |
|
Efficiency |
90% for particle sizes down to 0.4μm |
|
Carbon Weight |
N/A
|
