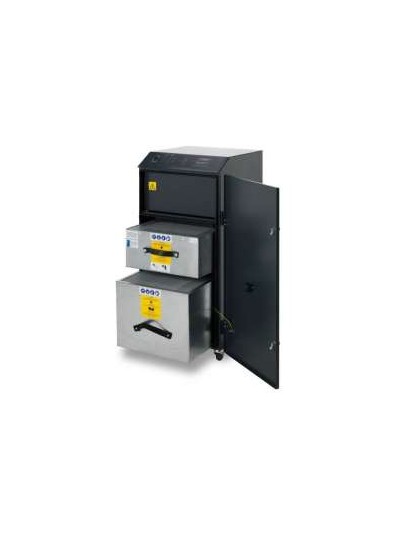

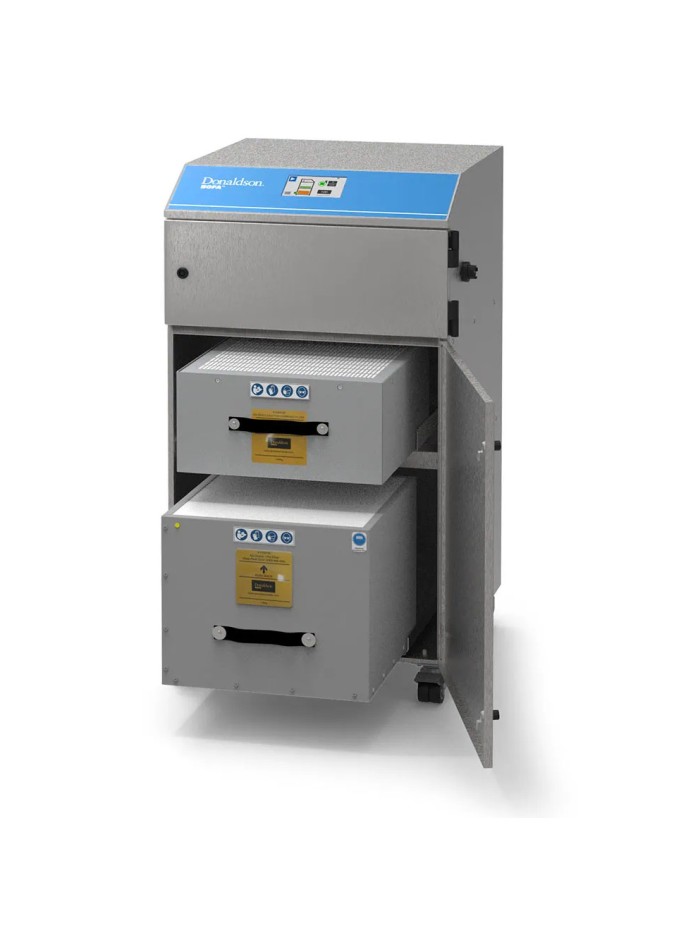

AD ORACLE PC system

Introducing the most advanced laser fume extractor: AD Oracle, which integrates multiple key features into one compact unit.

Its automatic voltage detection turbine works with any global voltage (110–220V). The reverse airflow system (bottom to top) optimises filter performance and extends its service life.

Automatic flow control allows the flow to be readjusted to reduce noise and protect both the combined filter and the DeepPleat DUO pre-filter, with 12 m² of filtering surface area.

· Automatic voltage adaptation (90–257V)

· Long-lasting filters and low replacement cost

· Automatic flow control system

· Filter status display

· Compact and quiet design

980 x 430 x 430 mm

Reference M0477

Specific References

Download

Sistema AD ORCALE PC

Download (341.85KB)

Quick view

AD Oracle PC Combined filter

Filter materials are non-toxic and therefore can be disposed of under normal waste conditions, subject to analysis of the collected particulate and/or Gas.

Specifications:

Type

Combined Filter

Dimensions (mm)

190H x 370W x 390D Approx.

Filter Media

Pleated glass fibre material.

Filter Media 2 (if applicable)

Impregnated Activated Carbon.

Fabrication

Zinc plated Steel case, sealed with Polyurethane sealant.

Connection

N/A

Efficiency

99.997% removal of 0.3µm particles.

Carbon Weight

Approximately 11 Kg.
