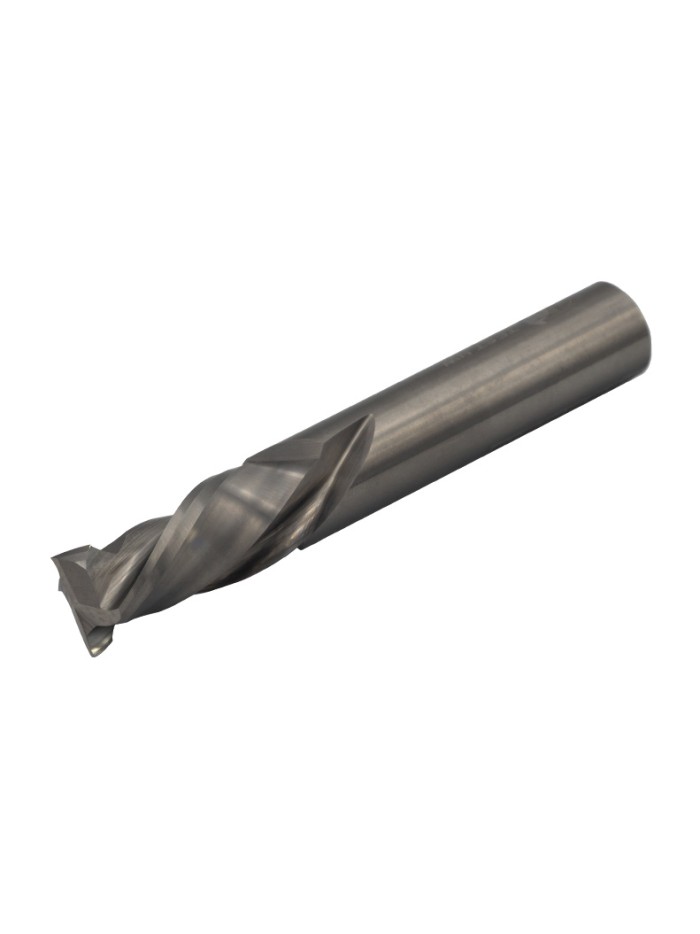

Compression D endmill z2+2

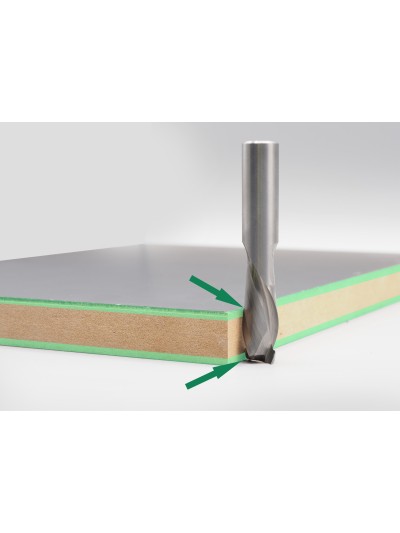

Compression series developed with high wear resistance sub-micrograin carbide. It features highly optimised helix geometry and finishes for perfect chip evacuation, allowing it to be used at high feed rates. Its design is ideal for achieving perfect finishes free of delamination on the outermost layers in:

- Hard and soft woods.

- Plywood, MDF, melamine chipboard, OSB, etc.

- Solid surface materials: Corian®, Krion®, Varicor®, etc.

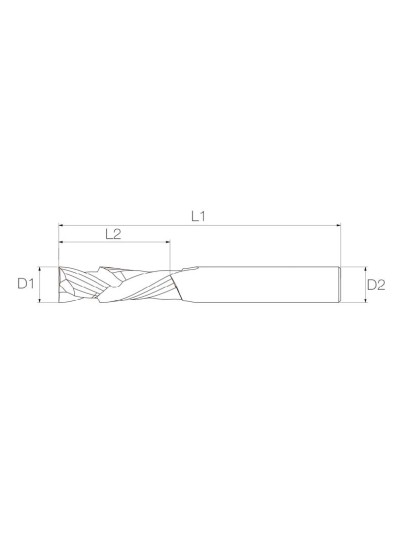

Serie COMPRESION D D1 (mm) D2 (mm) L2 (mm) L1 (mm) z
EM2106 6 6 22 64 2+2
EM2108 8 8 22 64 2+2
EM2110 10 10 22 64 2+2
EM2112 12 12 28 76 2+2
EM2180 12 12 35 80 2+2
EM2116 16 16 55 100 2+2
