Downcut 2 flute endmills for grooving in wood and solid surface materials
  • Downcut 2 flute endmills for grooving in wood and solid surface materials

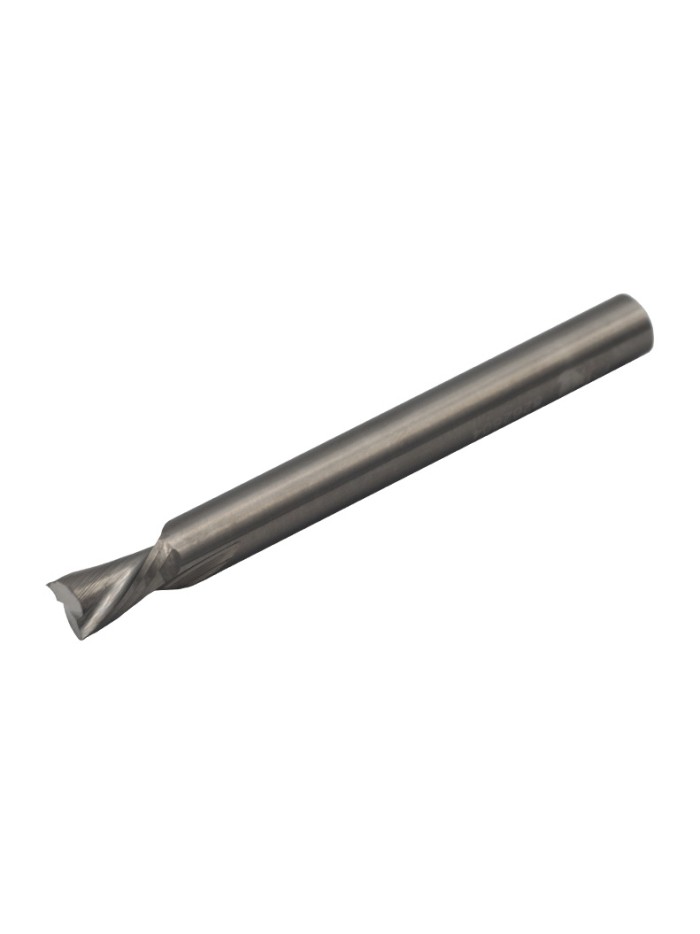

Downcut MORTISE endmill z2

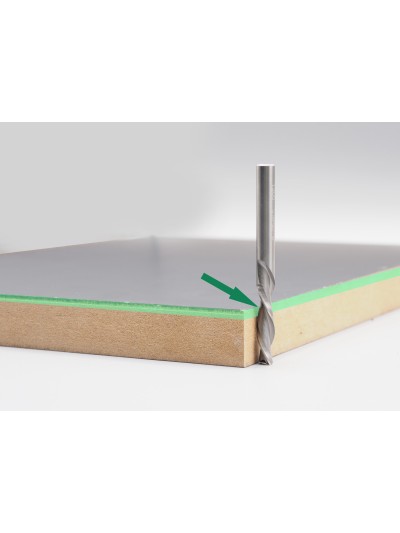

The MORTISE series is characterized by its two downcut flutes. This milling cutter has a high ge­ometric stability and is mainly used for grooving and pocketing at high feed rates, also for cutting thin sheets and small parts. The downcut holds the material against the working table and allows for high quality surface finishes to be achieved.

Materials:

+ HPL

+ Softwoods

+ Hardwoods

+ Tropical woods

+ Phenolic plywood

+ MDF

+ Melamine chipboard

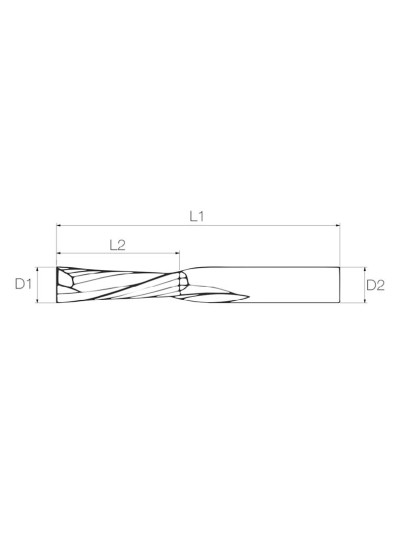

Serie D1 D2 L2 L1
MORTISE mm mm mm mm z
Ref.   Métrico
EM2150 3 6 12 50 2
EM2105 4 6 16 55 2
EM2156 5 6 20 60 2
EM2166 6 6 12 64 2
EM2125 6 6 25 64 2
EM2188 8 8 18 64 2
EM2118 12 12 18 64 2
MORTISE

Specific References
