- New

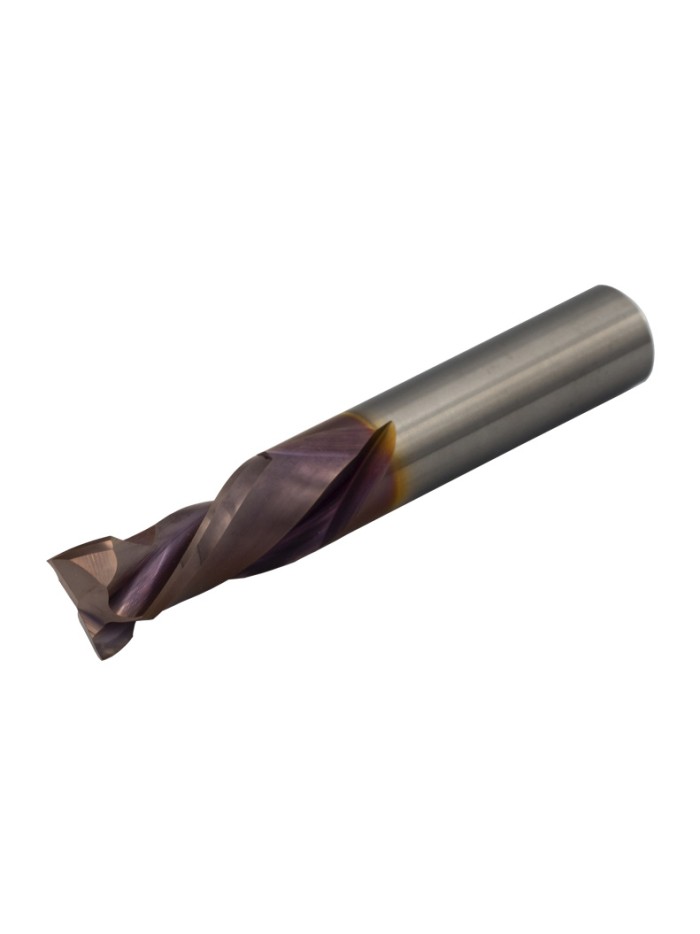

MC COMPRESSION is similar in geometry to D COMPRESSION, but MC has a coating that allows heat to be released from the cutting edge, thereby delaying wear on the cutter. Especially suitable for high production on melamine boards, MDF, plywood, etc.
Materials
+ Softwoods
+ Hardwoods
+ Tropical woods
+ Phenolic plywood
+ MDF
+ Melamine chipboard

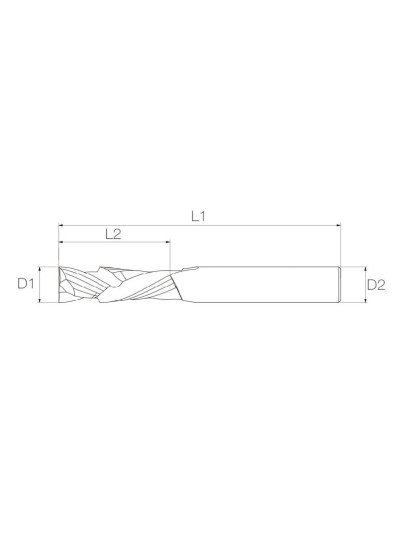

| COMPRESION MC | D1 (mm) | D2 (mm) | L2 (mm) | L1 (mm) | z |
| EM2103 | 6 | 6 | 22 | 64 | 2+2 |
| EM2164 | 8 | 8 | 22 | 64 | 2+2 |
| EM2122 | 10 | 10 | 22 | 64 | 2+2 |
| EM2176 | 12 | 12 | 28 | 76 | 2+2 |
| EM2135 | 12 | 12 | 35 | 80 | 2+2 |
| EM2155 | 16 | 16 | 55 | 100 | 2+2 |
The ROMPEVIRUTAS (chip breaker) series is characterised by its special geometry, designed mainly for cutting HPL, Trespa or very hard materials. This continuous-edge cutter has a variable chipbreaker that leaves no marks, minimises vibrations during machining processes and dissipates heat thanks to its anti-abrasion coating.
Materials:
+ HPL
+ Trespa
+ Softwoods
+ Hardwoods
+ Tropical woods
+ Phenolic plywood
+ MDF
+ Melamine chipboard
The MORTISE series is characterized by its two downcut flutes. This milling cutter has a high geometric stability and is mainly used for grooving and pocketing at high feed rates, also for cutting thin sheets and small parts. The downcut holds the material against the working table and allows for high quality surface finishes to be achieved.
Materials:
+ HPL
+ Softwoods
+ Hardwoods
+ Tropical woods
+ Phenolic plywood
+ MDF
+ Melamine chipboard
Liquid diamond-coated tool with high performance that allows for perfect finishes, optimising the productivity of your CNC to the maximum, as its innovative design allows it to be used at extreme speeds of up to 40-50 m/min.
Materials:
+ MDF, melamine chipboard, plywood.
+ High-gloss finish panels, aluminium-coated panels, high-pressure laminates (HPL, Trespa®, Formica®), Bakelite.
Compression series developed with high wear resistance sub-micrograin carbide. It features highly optimised helix geometry and finishes for perfect chip evacuation, allowing it to be used at high feed rates. Its design is ideal for achieving perfect finishes free of delamination on the outermost layers in:
- Hard and soft woods.
- Plywood, MDF, melamine chipboard, OSB, etc.
- Solid surface materials: Corian®, Krion®, Varicor®, etc.
MC COMPRESSION is similar in geometry to D COMPRESSION, but MC has a coating that allows heat to be released from the cutting edge, thereby delaying wear on the cutter. Especially suitable for high production on melamine boards, MDF, plywood, etc.
Materials
+ Softwoods
+ Hardwoods
+ Tropical woods
+ Phenolic plywood
+ MDF
+ Melamine chipboard
